Common Names: Pin and Grommet, 2-pc Rivet, Retainer Assembly

Description: The two-piece fastener was developed to offer a part that had low insertion values and was reusable. Additionally, it can be designed as a single position fastener or a multi-position fastener, The performance values can be customized for most applications and foam seals can be included for sealing purposes.

Typical Materials: Acetal

Hole Size: 7.0 – 13.0 mm diameter

Panel Thickness: 0.8 mm and up

Multi-Position Multi-Position Sealed Reverse Design

Details:

  • Low Insertion
  • Extraction values customized per application
  • Reusable
  • Serviceable
  • Multiple position assemblies for large build variances
  • Rigid Assembly for installation

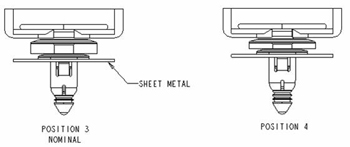

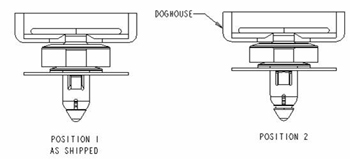

Typical Multiposition Application
